Hemera is a French company created in 2012 by a team of experts in the metrology field. We design, manufacture and commercialize high-end liquid and gas online analyzers using UV spectroscopy technology. With an innovative technology developed at the company and using high-quality materials, our goal is to offer the best solution to our customers by properly understanding their needs through a good diagnosis of their requests. Also, we participate in several R&D projects in order to keep being innovative and today we are present in Asia, Europe, and the Middle East through a strong network of business partners.

Designs

By designing and studying appliance, measuring method and process, and new components analysis, our research department improves continuously our range of products.

Manufactures

appliance, measuring method and process, and new components analysis, our research department improves continuously our range of products. Our team assembles all our products in France to be reactive, ensures that they meet all requirements of your application and follows your product throughout its entire lifetime.

Sales

Hemera sales its products all over the world thanks to a distributor network.

L800 analyzer can be configured regarding the analysis and the installation to suit your industrial application, for example pure water and process water.
Provided with an ATEX enclosure (zone I or zone II), or including 4-20mA and relay output signals, the analyzer can be easily integrated into your existing installation. With robust elements and a measurement method without chemical consumption, L800 analyzer requires little service and maintenance resources. The instrument may be equipped with multiplexing system to measure several sampling points in a same instruments.

Parameter Range Colorimetry Potentiometry Spectrometry Liquid Phase Spectrometry Gas Phase
Ammonium: NH4+ 0,1 ... 1000 mg/L ✔ ✔
Nitrate: NO3- 0,1 ... 200 mg/L ✔ ✔ ✔ ✔
Nitrite: NO2- 0,01 ... 20 mg/L ✔ ✔
TN 0,1 ... 1000 mg/L ✔
Phosphate: PO43- 0,01 ... 20 mg/L ✔
TP 0,01 ... 20 mg/L ✔
COD 1 ... 10000 mg/L ✔ ✔
BOD 1 ... 10000 mg/L ✔
TOC 1 ... 10000 mg/L ✔
Sulphides 0.1 ... 1000 mg/L ✔
Sulphites 0.1 ... 1000 mg/L ✔
TS 0.1 ... 1000 mg/L ✔
Suspended solids TSS 1 ... 10000 mg/L ✔
Turbidity Turb 0,001 ... 10000 NTU ✔
Color 0,01 ... 2000 Pt-Co ✔
Chlorine CL2 0,01 ... 20 mg/L ✔ ✔
Chlorine dioxide CL02 0,01 ... 20 mg/L ✔ ✔
TCL 0,1 ... 1000 mg/L ✔
Chlorophyll A 0,01 ... 100 mg/L ✔
Hydrocarbons HC 0,01 ... 100 mg/L ✔
Oxygen O2 0,01 ... 100 mg/L ✔
Conductivity EC 0,001 ... 2000 mS/cm ✔
pH H+ 0... 14 H+ ✔
Ozone O3 0,01... 10 mg/L+ ✔
ORP 2000...2000 mV ✔
Aluminium 0...1 mg/L ✔
Total Ammonia Nitrogen 0...100 mg/L ✔
Paris

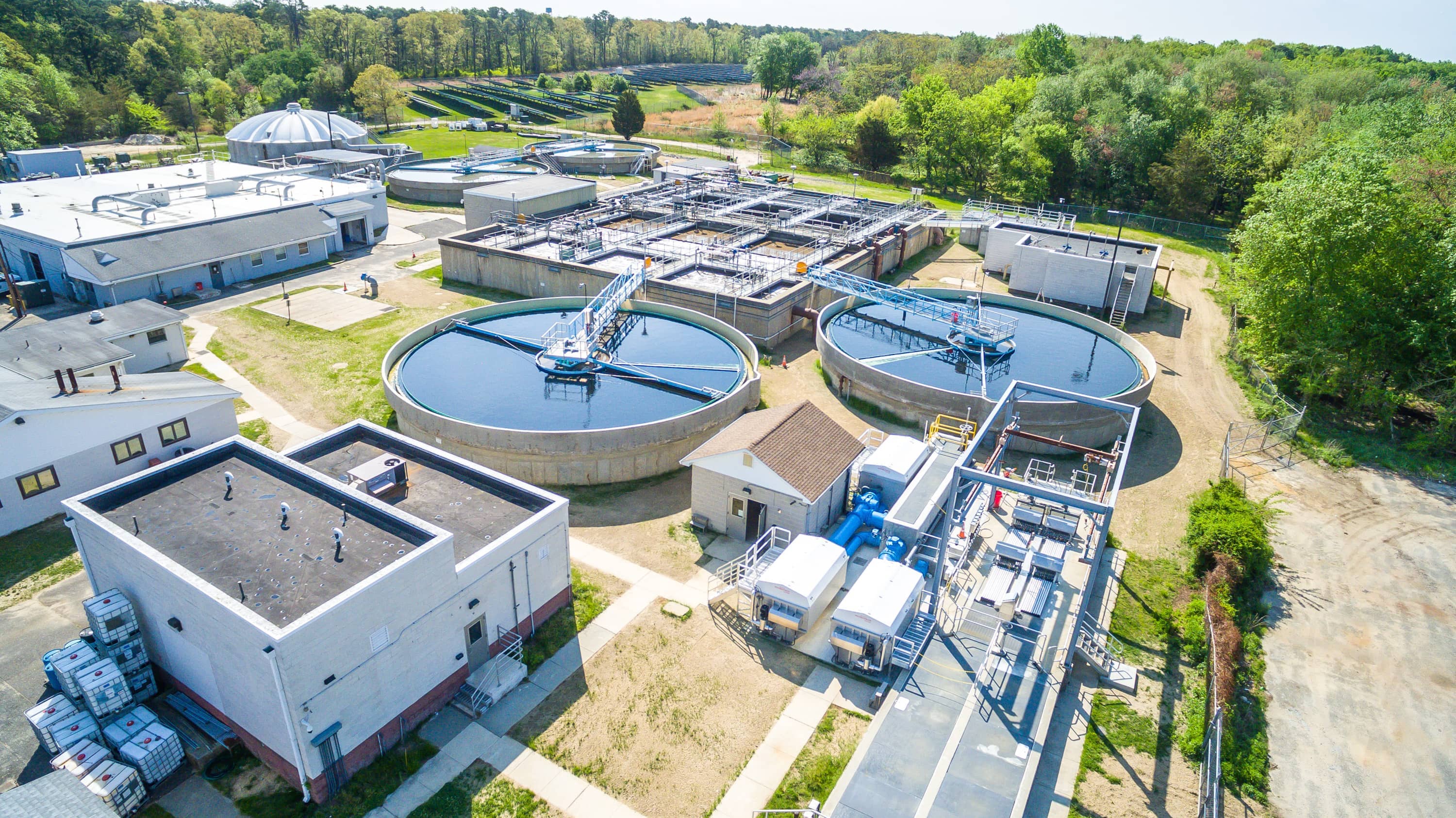

Waste water treatment

Waste water treatment plant NO3-, NO2-, NH4+, COD, pH, TSS, PO43- Colour

Paris

Swimming pool

Pool water O3, CL2, CLO2

Paris

Surface water

River, Lake, Rainfall water NO3-, PO43-, Hydrocarbon, COD, Salinity, DO, pH, NH4+


Paris

Sea water

Desalination plant, Harbour S2-, Hydrocarbon, NH4+, NO2-

Paris

Drinking water

Potabilization plant NO3-, pH, Colour, Chlorine, Turbidity



G800 analyser covers an important part of industrial application including petrochemical plants, power plants, gas and paper industries.
Provided with an ATEX enclosure (zone I or zone II), or including 4-20mA and relay output signals, the analyser can be easily integrated into your existing installation. With robust elements and a technology which needs no moveable part, Aether process analyser requires little service and maintenance resources. The instrument may be equipped with multiplexing system to measure several sampling points in a same instruments. For some applications, an industrial oven may be built-in the analyser to maintain the temperature of gas above the due point.
G800 process analyser provides fast measurements of a wide range of pollutants such as ammonia, hydrogen sulphide, nitric oxide, sulphur dioxide, nitrogen dioxide, mercaptans, BTX An innovative mathematical algorithm allows selective and reliable concentration measurements.

Parameter Range IR Absorption UV Absorption UV Fluorescence Chemiluminescence
Sulfur dioxide (SO2) 0 ... 1000 mg/m3 ● ●
Sulfur Trioxide (SO3) 0 ... 1000 mg/m3
Nitric oxide (NO) 0 ... 1000 mg/m3 ●
Nitrogen dioxide (NO2) 0 ... 1000 mg/m3 ●
Ammonia (NH3) 0 ... 100 mg/m3
Formaldehyde (HCHO) 0 ... 100 mg/m3
Hydrocarbon (HC) 0 ... 1000 mg/m3
Ozone (O3) 0 ... 100 mg/m3 ●
Hydrogen sulfide (H2S) 0 ... 100 mg/m3
Carbonyl sulfide (COS) 0 ... 100 mg/m3
Methyl mercaptan (R-SH) 0 ... 100 mg/m3
Carbon monoxide (CO) 0 ... 1000 mg/m3 ●
Carbon dioxide (CO2) 0 ... 10 % ●
Chlorine dioxide (ClO2) 0 ... 100 mg/m3
Chlorine (Cl2) 0 ... 100 mg/m3 ●
Carbon disulfide (CS2) 0 ... 100 mg/m3
Phenol (C6H5OH) 0 ... 100 mg/m3
Nitrogen trichloride (NCl3) 0 ... 100 mg/m3
Methane (CH4) 0 ... 100 % ●

Paris

Emission

Industry, Power Plant, Waste incinerator SO2, NH3, NO, NO2, CL2

Paris

Ambient air

City, Industry H2S, SO2, NOX, O3

Paris

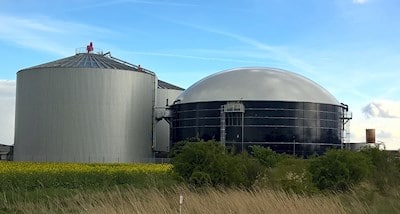

Biogas

Biogas plant H2S, NH3, Mercaptan


Paris

Engine gas

Motor bench Embedded system on vehicle NH3, NOX, SO2, H2S
