| Housing |
ABS / PP
|
| Thermo-Insulation |
Insulated lower part (sample compartment)
(insulation thickness 22 - 33mm)
|
| Control
|
Microprocessor control, Sleep-Mode (<5mA), power supply 8-16 V foil keyboard (with
keys 0-9, ESC, ENT, cursor), graphical display (128*64 Pixel), back lit |
| Data logger |
3000 entries, non-volatile data memory;
storage of sampling and malfunction data like sample extractions, bottle changes,
messages, external signals.

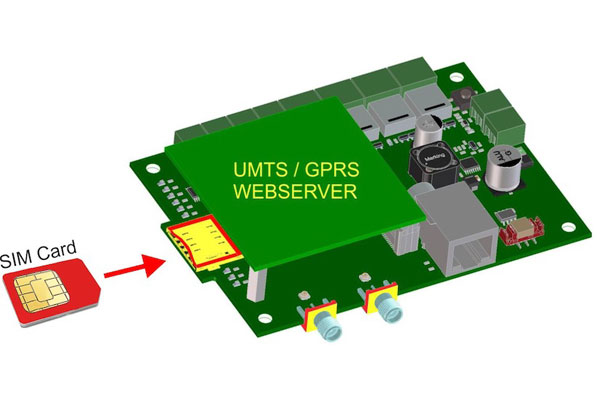

optional with WEB-board 100 MB
(2 Year ring memory-FIFO at 1 min interval)
|
| Programming |
12 freely programmable user programs, with function to link programs.
|
| Program start options
|
- IMMEDIATELY;
- DATE/TIME
- WEEKDAY/TIME;
- BY AN EXTERNAL SIGNAL
|
| Program End/Stop
options
|
End of sampling program
- AFTER 1 RUN
- AFTER X RUNS
- CONTINUOUS OPERATION
- DATE/TIME
|
| Pause mode |
Interruption of program run at any time
|
| Overfilling protection |
Adjustable from 1–999 samples/bottles
|
| Interval setting |
1 min. to 99 h 59 min. in steps of 1 minute
|
| Sampling method |
- Peristaltic Pump 10–10.000 ml
|
| Pulse setting |
1 to 9999 pulses/sample
|
| Manual sample extraction |
on Possible at any time without interrupting the current program run
|
| Program protection |
Up to 5 years after voltage loss
|
| Interface |
Mini-USB, RS 232
optional: Ethernet RJ45, SDI-12
|
| Overfilling protection |
Adjustable from 1–999 samples/bottles
|
| Wetted materials |
PC, PVC, Silicone, POM, PE, SS304
|
