| Housing |
Double-walled stainless steel (material 1.4301/ SS304) with
40 mm
insulation. Housing separated in sample compartment and
control
compartment, each with lockable door. Protective top which
can be
opened for connection and maintenance works.
Option: material 1.4571/ SS316Ti or SS304/ SS316Ti -EPOXY
coated
|
| Thermostatic control |
Self-contained, controlled cooling / heating with 4
settings, no-frost.
independent of the programmable controller,
Temperature in sample compartment: 4°C (adjustable from
0,0-9,9°C)
|
| Control
|
Microprocessor control, Sleep-Mode (<5mA), power supply 8-16
V foil keyboard (with keys 0-9, ESC, ENT, cursor),
graphical display (128*64 Pixel), back lit |
| Data logger |
3000 entries, non-volatile data memory;
storage of sampling and malfunction data like sample
extractions, bottle changes,
messages, external signals.
optional with WEB-board 100 MB
(2 Year ring memory-FIFO at 1 min interval)
|
| Programming |
12 freely programmable user programs, with function to link
programs.
|
| Program start options
|
- IMMEDIATELY;
- DATE/TIME
- WEEKDAY/TIME;
- BY AN EXTERNAL SIGNAL
|
| Program End/Stop
options
|
End of sampling program
- AFTER 1 RUN
- AFTER X RUNS
- CONTINUOUS OPERATION
- DATE/TIME
|
| Pause mode |
Interruption of program run at any time
|
| Overfilling protection |
Adjustable from 1–999 samples/bottles
|
| Interval setting |
1 min. to 99 h 59 min. in steps of 1 minute
|
| Sampling method |
-Vacuum system 20-350 ml
Option: bypass system 20-250 ml (compressed air necessary)
Explosion-proof diaphragm pump 230 V, vacuum 6 m, pressure
1 bar, change-over from pressure/vacuum/aeration by means of
explosion-proof solenoid valves.
|
| Pulse setting |
1 to 9999 pulses/sample
|
| Manual sample extraction |
Possible at any time without interrupting the current
program run
|
| Program protection |
Up to 5 years after voltage loss
|
| Interface |
Mini-USB, RS 232
optional: Ethernet RJ45, SDI-12
|
| Signal inputs |
• 2 x analogue: 0/4-20 mA,
• 8 x digital (flow, event, 1 inputs can be programmed
freely)
option: expandable with 4x digital, 3 inputs can be
programmed freely, and 8x
analogue 0- 20 mA or 0-10 V, Impulslength 60ms, switching
level 7-24 V,
max. working restistance 500 Ohm, max. length of signalcable
30 m
|

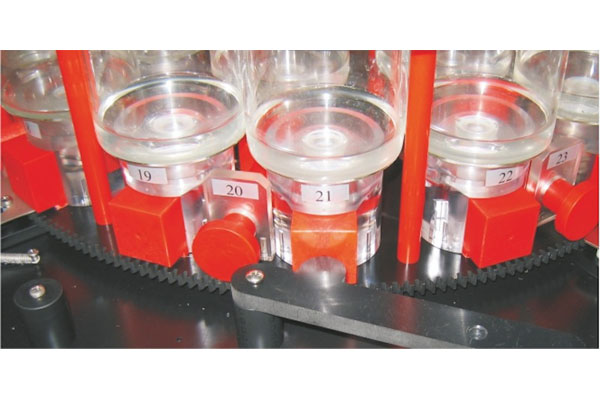

| Bottle variants
|
2 x 10 L PE
4 x 5 L PE
12 x 1,6 L glass Duran50
optional:
24 x 2 L glass Duran50
(1400 x 800 x 850 mm)
|
| Wetted materials
|
PC, PVC, Silicone, PS, PE, EPDM (optional: metering vessel
glass Duran50,
sinker weight SS304)
|
